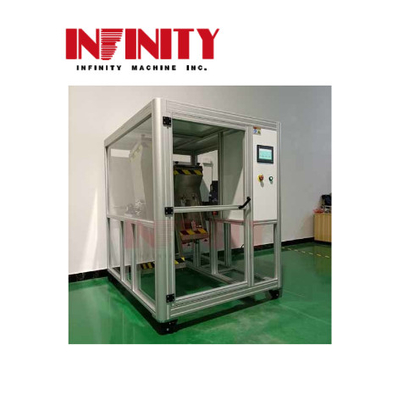

Smartphones Repeated Free Fall Tumbler Test Machine Mobile Device Tumble Random Drop Testing Machine

Smartphones Repeated Free Fall Tumbler Test Machine Mobile Device Tumble Random Drop Testing Machine

Λεπτομέρειες:
Τόπος καταγωγής: Κατασκευάστηκε στην Κίνα
Μάρκα: Infinity Machine
Πιστοποίηση: ISO
Αριθμό μοντέλου: ΙΒ1151
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1 σετ
Τιμή: διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: Tumbler Drop Tester Standard Export Wooden Case με εγχειρίδιο λειτουργίας και βίντεο μέσα.
Χρόνος παράδοσης: Μηχανή δοκιμών επιπτώσεων πτώσης πτώσης: αποστέλλονται σε 15 ημέρες μετά την πληρωμή
Όροι πληρωμής: T/t
Δυνατότητα προσφοράς: Μηχανή δοκιμής πτώσης πτώσης: 50 σύνολα το μήνα
Επικοινωνία
Λεπτομερής Περιγραφή Προϊόντος
Ποσό δοκιμής: 2 σετ, 3 σετ, 4 σετ Διάμετρο πτώσης: 350mm
ύψος πτώσης: 500 mm ή 1000 mm Ταχύτητα δοκιμής: 5 ~ 20 φορές / λεπτό
Κύκλος δοκιμής: 1~999,999 φορές (μπορεί να ρυθμιστεί) Διάσταση: 1300x1200x1500 χιλιοστά
Βάρος: 370 κιλά Τροφοδοσία: AC220V 50Hz 5A ή που καθορίζεται από τον χρήστη
Επισημαίνω:

smartphone drop testing machine

,

mobile device tumble tester

,

free fall test machine

Smartphones Repeated Free Fall Tumbler Test Machine
Mobile Device Tumble Random Drop Testing Machine
Application

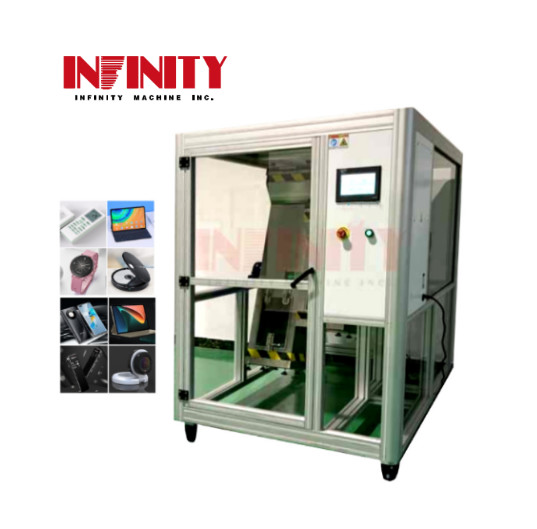

Rolling tumbler drop tester is suitable for continuous rotation drop test of small consumer electronic products such as:

  • Mobile phones
  • Cameras, tablets
  • Bluetooth speakers, chargers
  • Earphones, watches, Pad
  • Electronic dictionaries, CD players
  • MP3/MP4/MP5 players
  • Remote controllers
  • Adapters

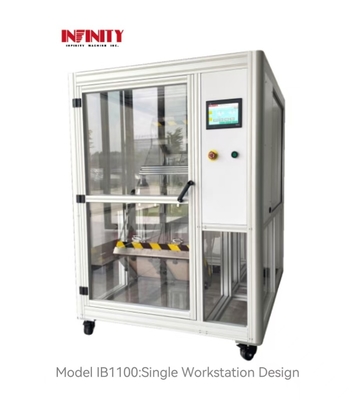

Available configurations include single tumbler, double barrels, three tumbler, or four barrels models. Custom tumble drop impact testing equipment can be manufactured according to your requirements.

Smartphones Repeated Free Fall Tumbler Test Machine Mobile Device Tumble Random Drop Testing Machine 0 Smartphones Repeated Free Fall Tumbler Test Machine Mobile Device Tumble Random Drop Testing Machine 1 Smartphones Repeated Free Fall Tumbler Test Machine Mobile Device Tumble Random Drop Testing Machine 2 Smartphones Repeated Free Fall Tumbler Test Machine Mobile Device Tumble Random Drop Testing Machine 3 Smartphones Repeated Free Fall Tumbler Test Machine Mobile Device Tumble Random Drop Testing Machine 4 Smartphones Repeated Free Fall Tumbler Test Machine Mobile Device Tumble Random Drop Testing Machine 5
Standards Compliance

Our tumble test machine complies with:

  • IEC60068-2-31 / IEC60068-2-32
  • GB/T2324.8
  • Other applicable test standards
Specifications
Products Tumble Test Machine
Model IB1151
Test amount 2 set, 3 set or 4 set
Drop width 350mm
Drop height 500mm, 1000mm or customized
Drop bottom plate material Steel, hardwood or specific by user
Test speed 5~20 times /min
Test cycle 1~999,999times (can set)
Safety enclosure Yes
Safety protective door Yes
Safety protection device Yes
Dimension (WxDxH) 1300x1200x1500mm
Weight 165kg
Power Supply AC220V 50Hz, AC110V 60Hz or specific by user
Our Workshop
Smartphones Repeated Free Fall Tumbler Test Machine Mobile Device Tumble Random Drop Testing Machine 6
Technical Support and Services

We are committed to providing exceptional technical support and services to ensure rigorous testing and quality control:

  • Technical advice and assistance from inquiry to delivery
  • Customized services to fit specific needs
  • Installation and set-up services
  • Training and maintenance services
  • Spare part and consumable supply services

Our specialist team provides high-quality support for all test machines. Contact us with any questions or assistance needs.

Packing and Shipping

Test machines are packed in appropriate cardboard boxes and/or crates. Standard shipping methods include:

  • Air freight
  • Sea freight
  • Ground transport

Special shipping requirements should be discussed prior to purchase. Customers are responsible for all import duties, taxes, and fees. We provide all necessary documentation for customs clearance.

Frequently Asked Questions

1. How to choose the most suitable Compression testing machine?

Our professional team will provide recommendations based on your test requirements and specifications.

2. What's the delivery term?

We typically maintain factory stock. For custom orders, delivery time is 15-20 working days after deposit receipt. Expedited arrangements are available for urgent needs.

3. Do you accept customization service?

Yes, we offer both standard and customized machines. We welcome your specific requirements.

4. Can we visit your factory before order?

Yes, we warmly welcome factory visits.

5. Do you have customers in our country before?

Our testing machines have been sold to over 30 countries including USA, Canada, Russia, UK, Italy, Germany, EU nations, India, Pakistan, Philippines, Singapore, Thailand, Vietnam, Iran, Brazil, and others.

6. How about your warranty?

Standard warranty is one year, including technical support and parts replacement. On-site engineer service is available when necessary.

7. How about the packing for machine?

Machines are packed in standard export wooden cartons, proven safe for international shipping by sea or air.

8. How to install and use the product?

Products ship with English operating instructions and instructional videos.
